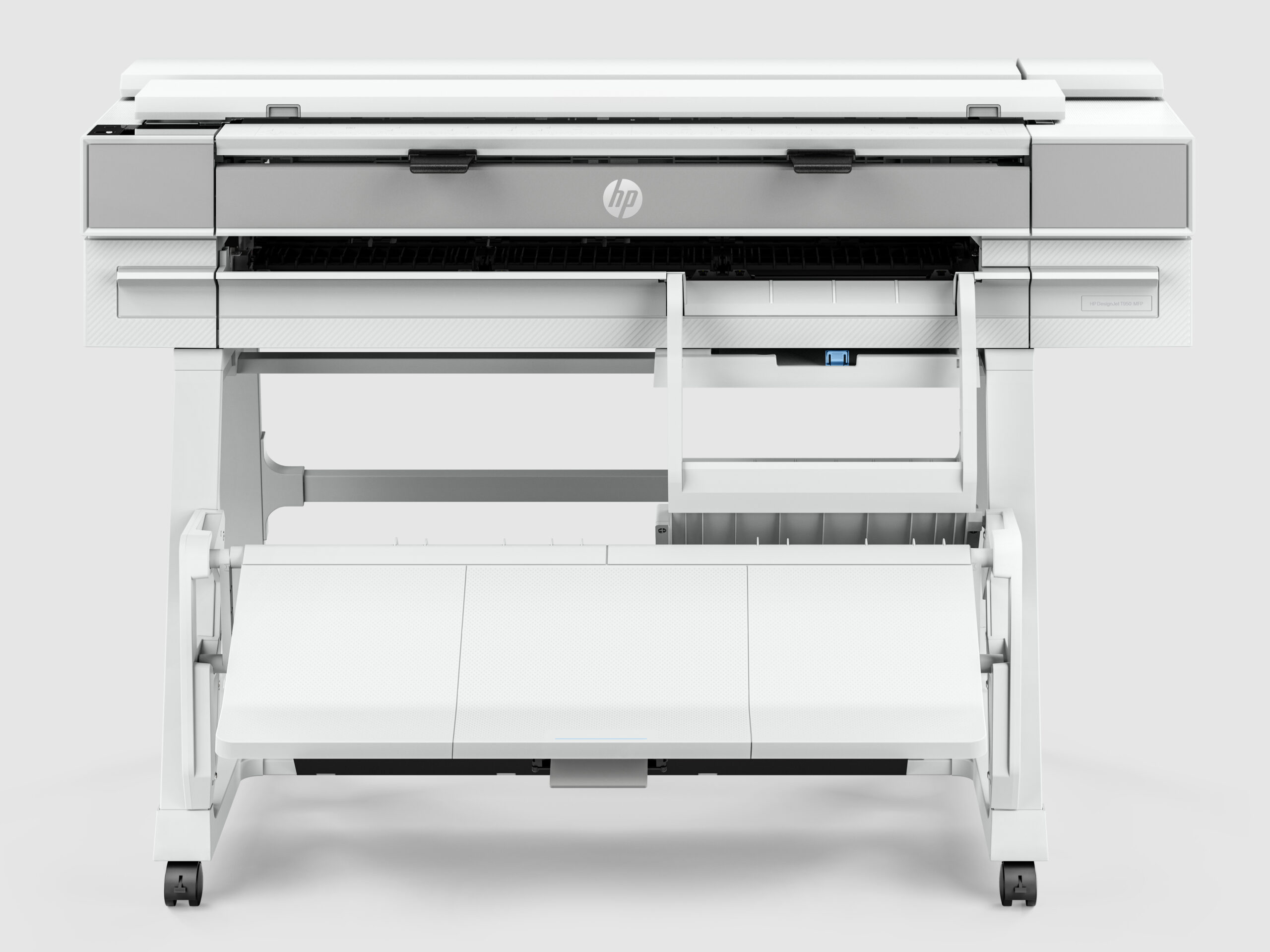

HP DesignJet XT950 36-in Multifunction Printer, 2Y9H3F
Price Is Hidden
Take productive printing to the next level with the world’s most efficient A3-A1 printing experience. Print multiple sizes in one click. Work securely from virtually anywhere. Go beyond in your efforts to address office and environmental needs. Print, scan, copy, and share with ease! The HP DesignJet XT950 delivers high-quality results on large formats, perfect for architects, engineers, designers, and students. Its innovative features like automatic roll and sheet switching, fast printing speeds, and one-click shortcuts make it a breeze to get your work done.
Pick up your jobs quickly and simply—stacker holds up to 40 pages flat for easy collection.[2]
Do it all—seamlessly print your half-size jobs with integrated input and output trays, keeping pages sorted by size.
Move projects forward with fast print speeds, 300-ft roll, and high image quality with pigment-based HP Flex Tech Inks.
Brand
Brand
HP
Technical Specifications
| Acoustic power emissions (active, printing) | 5.8 B(A) (operating), <3.4 B(A) (idle) |
| Acoustic pressure emissions | 42 dB(A) (operating), <16 dB(A) (idle) |
| Color(s) of printing supplies | Cyan, magenta, yellow, matte black |
| Connectivity, standard | Gigabit Ethernet (1000Base-T), Wi-Fi 802.11b/g/n |
| Copy reduce / enlarge settings | 50 to 400% |
| Eco label | ENERGY STAR® certified; EPEAT registered |
| Electromagnetic compatibility | Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES), EU (RED Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI); Korea (KCC) |
| Energy star certified | Yes |
| Environmental certification | ENERGY STAR, EPEAT, UL ECOLOGO® certified inks, CE marking (including WEEE, RoHS, REACH, ErP). In compliance with applicable WW RoHS materials restriction requirements. |
| Finished output handling | Sheet feed, roll feed, front-loading input tray (100 sheet capacity), sheet organizer (50 sheet capacity[4]), stacker (40 sheet capacity[4]), automatic horizontal cutter |
| Functions | Print, copy, scan |
| HP ePrint capability | Yes |
| Ink drop | 6 pl (C, M, Y); 12.6 pl (mK) |
| Ink types | Pigment-based (C, M, Y, mK) |
| Internal Storage | None |
| Line accuracy | ±0.1%[2] |
| Linear scan speed | Up to 1.5 in/sec (color, 200 dpi); Up to 4.5 in/sec (grayscale, 200 dpi) |
| Manufacturer Warranty | One-year limited hardware warranty. Warranty and support options vary by product, country and local legal requirements. |
| Maximum optical density (black) | 15 L* min/1.7 D[3] |
| Media sizes standard (sheets, rolls) | 14.5 to 36 in |
| Media sizes supported | Input tray: A, B; Manual feed: A, B, C, D, E |
| Media sizes, custom | Front-loading input tray: 8.3 x 11 to 12 x 18 in; Manual feed: 8.3 x 11 to 36 x 66 in |
| Media thickness | Up to 0.03 in |
| Media types | Bond and coated paper (bond, coated, heavyweight coated, plain, bright white, blueprint), technical paper (natural tracing), film (clear, matte), photographic paper (ID satin, ID gloss), self-adhesive (adhesive matte/gloss, adhesive polypropylene gloss), Polypropylene (matte) |
| Media width, maximum | 36 in |
| Memory | 2 GB |
| Model size | 36 in |
| Network ready | Standard |
| Non-Operating Humidity Range | 0 to 95% RH |
| Non-printable area (cut-sheet) | 0.2 x 0.2 x 0.2 x 0.2 in |
| Non-printable area (roll media) | 0.2 x 0.2 x 0.2 x 0.2 in |
| Number of print cartridges | 4 (C, M, Y, mK) |
| Operating altitude | Up to 9843 ft |
| Operating humidity range | 20 to 80% RH |
| Operating temperature range | 41 to 104°F |
| Orderable supplies | HP Original Ink: HP 738M cartridges (Black, Cyan, Magenta, Yellow), |
| Post consumer recycled plastic in hardware by weight of plastic | 36% |
| Power | Input voltage (auto ranging): 100-240 V (±10%), 50/60 Hz (±3 Hz), 1.2 A max |
| Power consumption | 35 W (printing), <11 W (ready), <3.5 W (sleep), <0.1 W (standby). Auto-scheduled printer on/off usage. |
| Print head nozzles | 1376 per color; 5504 in total |
| Print heads | 1 (C, M, Y, mK) |
| Print languages | TIFF, JPEG, URF, PDF, HP-GL/2, HP-RTL, CALS G4 |
| Print multi-size files in one click | Yes |
| Print quality color (best) | Up to 2400 x 1200 optimized dpi |
| Print speed | 21 sec/page on D, 120 D prints per hour[1] |
| Print Technology | Ink |
| Print technology | HP Thermal Inkjet |
| Printer drivers included | Raster driver for macOS and Windows, HP-GL/2 driver for Windows |
| Printing path | Wi-Fi Direct, remote printing, Apple AirPrint and HP app for Android and iOS devices, Windows and macOS printer drivers, printing support for Chrome OS, print from USB pen drive |
| Product display name | HP DesignJet XT950 Large Format 36-in Multifunction Plotter Printer with Compact Size, Versatility for CAD And Posters, Automatic A1 and A3 Printing in One Device |
| Recommended media | HP Universal Bond Paper (FSC® certified)[5] (recyclable)[6];HP Coated Paper (FSC® certified)[5] (recyclable)[6];HP Heavyweight Coated Paper (FSC® certified)[5] (recyclable)[6] |
| Registration required | No |
| Remote print enabled | Yes |
| Roll external diameter | 5.5 in |
| Roll maximum input | 1 |
| Roll maximum weight | 28.6 lb |
| Safety | USA and Canada (CSA certified); EU (RED Directive, EN 62368-1 compliant); Singapore (PSB); China (CCC); Mexico (NYCE); Argentina (IRAM); India (BIS) |
| Scan file format | JPEG, PDF, TIFF |
| Scan input modes | Scan to email, network, and USB. Scan to cloud, computer, and mobile through HP app. |
| Scan resolution, optical | Up to 600 dpi |
| Scan size, maximum | 36 x 109 in |
| Scan size, minimum | 5 x 5 in |
| Scanner type | Sheetfed, CIS (Contact Image Sensor), media jam detection sensor, front feed scanning method |
| Security features | HP Secure Boot, whitelisting, Security event logging, Disable network ports and protocols, SNMPv3, 802.1x compatibility, TLS/SSL, Semi-permanent-queue Erase, NTLM v2, HP Web JetAdmin, HP Security Manager, SIEM Integration |
| Software included | HP Click for Windows and macOS, HP app for Windows, macOS, Android, and iOS |
| Storage | 2.7 GB reprint queue |
| Storage temperature range | -13 to 131°F |
| Supported Primary Applications | Line drawings; Renderings; Presentations; Maps; Posters |
| Technical features | A3 input tray;Stacker;A3 sheet organizer;1- click scan/copy;Auto-power on/off scheduler;Max. resolution 2400 x 2400 dpi;HP Wolf Pro Security;130/300 ml cartridges;HP Flex Tech Inks |
| Theoretical minimum line width | 0.0008 in (via raster driver) |
| What's in the box | HP DesignJet XT950 MFP, printheads, ink cartridges, printer stand, spindle, guide, warranty flyer, power cord |
Specifications
[1] Mechanical printing time. Printed in Fast mode with Economode on, using HP Bright White Inkjet Paper (bond) and Original HP inks.
[2] ±0.1% of the specified vector length or ±0.2 mm (whichever greater) at 23ºC (73ºF), 50-60% relative humidity, on A0/E printing material in Best or Normal mode with HP Heavyweight Coated roll feed and Original HP inks.
[3] With HP Universal Instant Dry Photo Gloss media with Original HP inks.
[4] Based on test results using plain paper and standard configuration. Capacity is subject to paper type, printed file, and ambient conditions.
[5] BMG trademark license code FSC®-C115319, see http://www.fsc.org . HP trademark license code FSC®-C017543, see http://www.fsc.org
[6] Can be recycled through commonly available recycling programs.
Legal disclaimer
Product image may differ from actual product
AirPrint; CE marking; ENERGY STAR; EPEAT green; IPv6 Ready; Mac; Wi-Fi Certified; Windows 11 Compatible
