HP DesignJet XT950 | 36″ Technical Printer for CAD & Renderings
Request a Custom Quote

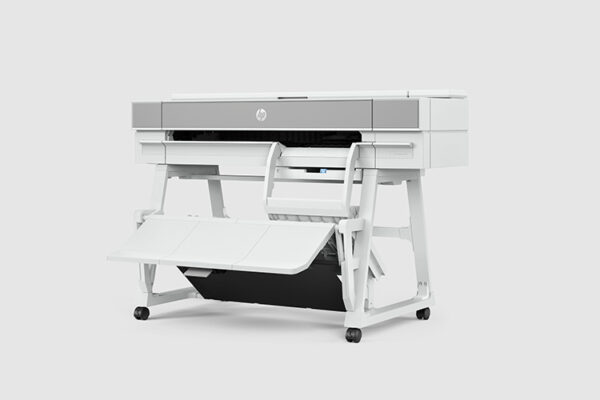

The HP DesignJet XT950 36″ printer (2Y9H1F) offers seamless multi-size printing from a compact footprint.
Designed for technical professionals, it includes dual input/output trays, a 40-page flat stacker, HP Click, and HP Wolf Pro Security — all built with sustainable materials and designed to simplify CAD and rendering workflows.
Description
HP DesignJet XT950 – 36″ Technical Printer for CAD & Renderings
The HP DesignJet XT950 36″ printer (model 2Y9H1F) offers fast, professional-quality output for technical and rendering applications. With a streamlined print-only design, it simplifies multi-size job management using dual input/output trays and a 40-page flat stacker. Its space-efficient form factor and mobile connectivity features make it ideal for architecture, engineering, and construction firms.
Backed by HP Wolf Pro Security and built with sustainable materials, the XT950 supports responsible, secure, and reliable performance in any high-output office environment.
Key Features:
- Print-Only Model: Single-function printer designed for CAD, drawings, and technical renderings.
- Integrated Input/Output Trays: Seamlessly switch between half-size and full-size jobs without manual changes.
- Flat Stacker Capacity: Collect up to 40 pages neatly with flat output for easy pickup.
- Eco-Conscious Design: Built with at least 35% recycled plastics, designed for low energy use.
- HP Wolf Pro Security: Enterprise-level protection built into firmware and network access.
- Mobile Access: Send jobs wirelessly via HP Smart App or HP Click with print preview controls.
Applications:
- Architecture & Design Firms: Print blueprints, project layouts, and elevation plans.
- Engineering Teams: High-detail technical drawings, schematics, and review documents.
- Construction Sites: Print full-size permits, site maps, and project updates quickly.
- Corporate Offices: Technical presentations, formatted schematics, and internal documentation.
Technical Specifications:
| Specification | Details |
|---|---|
| Model | HP DesignJet XT950 (2Y9H1F) |
| Functions | Print only |
| Max Print Width | 36 inches |
| Ink System | HP Flex Tech Inks – up to 300 ml per cartridge |
| Tray/Stacker System | Dual input/output trays; 40-page flat stacker |
| Print Speed | D-size in as little as 30 seconds (Fast mode) |
| Security | HP Wolf Pro Security, Secure Boot, Encrypted Data |
| Connectivity | Wi-Fi, Ethernet, USB, HP Smart App compatible |
Additional Information:
- Compatible Media: Bond paper, coated, photographic, presentation media
- Software Tools: Works with HP Click and HP Smart App for simplified workflows
- Recycling Program: HP Planet Partners – Free Ink & Cartridge Recycling
HP DesignJet XT950 – A smarter, more efficient way to print your technical documents with speed, accuracy, and sustainability.
Explore more wide-format printers: View Wide Format Printers
Brand
Brand
HP
Technical Specifications
| Acoustic power emissions (active, printing) | 5.8 B(A) (operating), <3.4 B(A) (idle) |
| Acoustic pressure emissions | 42 dB(A) (operating), <16 dB(A) (idle) |
| Color(s) of printing supplies | Cyan, magenta, yellow, matte black |
| Connectivity, standard | Gigabit Ethernet (1000Base-T), Wi-Fi 802.11b/g/n |
| Copy reduce / enlarge settings | 50 to 400% |
| Eco label | ENERGY STAR® certified; EPEAT registered |
| Electromagnetic compatibility | Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES), EU (RED Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI); Korea (KCC) |
| Energy star certified | Yes |
| Environmental certification | ENERGY STAR, EPEAT, UL ECOLOGO® certified inks, CE marking (including WEEE, RoHS, REACH, ErP). In compliance with applicable WW RoHS materials restriction requirements. |
| Finished output handling | Sheet feed, roll feed, front-loading input tray (100 sheet capacity), sheet organizer (50 sheet capacity[4]), stacker (40 sheet capacity[4]), automatic horizontal cutter |
| Functions | Print, copy, scan |
| HP ePrint capability | Yes |
| Ink drop | 6 pl (C, M, Y); 12.6 pl (mK) |
| Ink types | Pigment-based (C, M, Y, mK) |
| Internal Storage | None |
| Line accuracy | ±0.1%[2] |
| Linear scan speed | Up to 1.5 in/sec (color, 200 dpi); Up to 4.5 in/sec (grayscale, 200 dpi) |
| Manufacturer Warranty | One-year limited hardware warranty. Warranty and support options vary by product, country and local legal requirements. |
| Maximum optical density (black) | 15 L* min/1.7 D[3] |
| Media sizes standard (sheets, rolls) | 14.5 to 36 in |
| Media sizes supported | Input tray: A, B; Manual feed: A, B, C, D, E |
| Media sizes, custom | Front-loading input tray: 8.3 x 11 to 12 x 18 in; Manual feed: 8.3 x 11 to 36 x 66 in |
| Media thickness | Up to 0.03 in |
| Media types | Bond and coated paper (bond, coated, heavyweight coated, plain, bright white, blueprint), technical paper (natural tracing), film (clear, matte), photographic paper (ID satin, ID gloss), self-adhesive (adhesive matte/gloss, adhesive polypropylene gloss), Polypropylene (matte) |
| Media width, maximum | 36 in |
| Memory | 2 GB |
| Model size | 36 in |
| Network ready | Standard |
| Non-Operating Humidity Range | 0 to 95% RH |
| Non-printable area (cut-sheet) | 0.2 x 0.2 x 0.2 x 0.2 in |
| Non-printable area (roll media) | 0.2 x 0.2 x 0.2 x 0.2 in |
| Number of print cartridges | 4 (C, M, Y, mK) |
| Operating altitude | Up to 9843 ft |
| Operating humidity range | 20 to 80% RH |
| Operating temperature range | 41 to 104°F |
| Orderable supplies | HP Original Ink: HP 738M cartridges (Black, Cyan, Magenta, Yellow), |
| Post consumer recycled plastic in hardware by weight of plastic | 36% |
| Power | Input voltage (auto ranging): 100-240 V (±10%), 50/60 Hz (±3 Hz), 1.2 A max |
| Power consumption | 35 W (printing), <11 W (ready), <3.5 W (sleep), <0.1 W (standby). Auto-scheduled printer on/off usage. |
| Print head nozzles | 1376 per color; 5504 in total |
| Print heads | 1 (C, M, Y, mK) |
| Print languages | TIFF, JPEG, URF, PDF, HP-GL/2, HP-RTL, CALS G4 |
| Print multi-size files in one click | Yes |
| Print quality color (best) | Up to 2400 x 1200 optimized dpi |
| Print speed | 21 sec/page on D, 120 D prints per hour[1] |
| Print Technology | Ink |
| Print technology | HP Thermal Inkjet |
| Printer drivers included | Raster driver for macOS and Windows, HP-GL/2 driver for Windows |
| Printing path | Wi-Fi Direct, remote printing, Apple AirPrint and HP app for Android and iOS devices, Windows and macOS printer drivers, printing support for Chrome OS, print from USB pen drive |
| Product display name | HP DesignJet XT950 Large Format 36-in Multifunction Plotter Printer with Compact Size, Versatility for CAD And Posters, Automatic A1 and A3 Printing in One Device |
| Recommended media | HP Universal Bond Paper (FSC® certified)[5] (recyclable)[6];HP Coated Paper (FSC® certified)[5] (recyclable)[6];HP Heavyweight Coated Paper (FSC® certified)[5] (recyclable)[6] |
| Registration required | No |
| Remote print enabled | Yes |
| Roll external diameter | 5.5 in |
| Roll maximum input | 1 |
| Roll maximum weight | 28.6 lb |
| Safety | USA and Canada (CSA certified); EU (RED Directive, EN 62368-1 compliant); Singapore (PSB); China (CCC); Mexico (NYCE); Argentina (IRAM); India (BIS) |
| Scan file format | JPEG, PDF, TIFF |
| Scan input modes | Scan to email, network, and USB. Scan to cloud, computer, and mobile through HP app. |
| Scan resolution, optical | Up to 600 dpi |
| Scan size, maximum | 36 x 109 in |
| Scan size, minimum | 5 x 5 in |
| Scanner type | Sheetfed, CIS (Contact Image Sensor), media jam detection sensor, front feed scanning method |
| Security features | HP Secure Boot, whitelisting, Security event logging, Disable network ports and protocols, SNMPv3, 802.1x compatibility, TLS/SSL, Semi-permanent-queue Erase, NTLM v2, HP Web JetAdmin, HP Security Manager, SIEM Integration |
| Software included | HP Click for Windows and macOS, HP app for Windows, macOS, Android, and iOS |
| Storage | 2.7 GB reprint queue |
| Storage temperature range | -13 to 131°F |
| Supported Primary Applications | Line drawings; Renderings; Presentations; Maps; Posters |
| Technical features | A3 input tray;Stacker;A3 sheet organizer;1- click scan/copy;Auto-power on/off scheduler;Max. resolution 2400 x 2400 dpi;HP Wolf Pro Security;130/300 ml cartridges;HP Flex Tech Inks |
| Theoretical minimum line width | 0.0008 in (via raster driver) |
| What's in the box | HP DesignJet XT950 MFP, printheads, ink cartridges, printer stand, spindle, guide, warranty flyer, power cord |
Specifications
[1] Mechanical printing time. Printed in Fast mode with Economode on, using HP Bright White Inkjet Paper (bond) and Original HP inks.
[2] ±0.1% of the specified vector length or ±0.2 mm (whichever greater) at 23ºC (73ºF), 50-60% relative humidity, on A0/E printing material in Best or Normal mode with HP Heavyweight Coated roll feed and Original HP inks.
[3] With HP Universal Instant Dry Photo Gloss media with Original HP inks.
[4] Based on test results using plain paper and standard configuration. Capacity is subject to paper type, printed file, and ambient conditions.
[5] BMG trademark license code FSC®-C115319, see http://www.fsc.org . HP trademark license code FSC®-C017543, see http://www.fsc.org
[6] Can be recycled through commonly available recycling programs.
Legal disclaimer
Product image may differ from actual product
AirPrint; CE marking; ENERGY STAR; EPEAT green; IPv6 Ready; Mac; Wi-Fi Certified; Windows 11 Compatible
