HP DesignJet XT950 36-in Multifunction Printer, 2Y9H3F
Original price was: $10,935.00.$8,240.00Current price is: $8,240.00.
The HP DesignJet XT950 36″ Multifunction Printer (2Y9H3F) is tailored for professionals in CAD, GIS, and AEC sectors seeking a high-performance, eco-friendly, and secure large-format printing solution.
Featuring rapid print speeds, an integrated scanner, and HP Wolf Pro Security, it ensures efficient workflows and data protection.
With support for multi-size media handling, a 100-sheet input tray, and HP Flex Tech Inks, it delivers high-quality outputs. Constructed with at least 35% recycled plastics, it aligns with sustainability goals.
Description

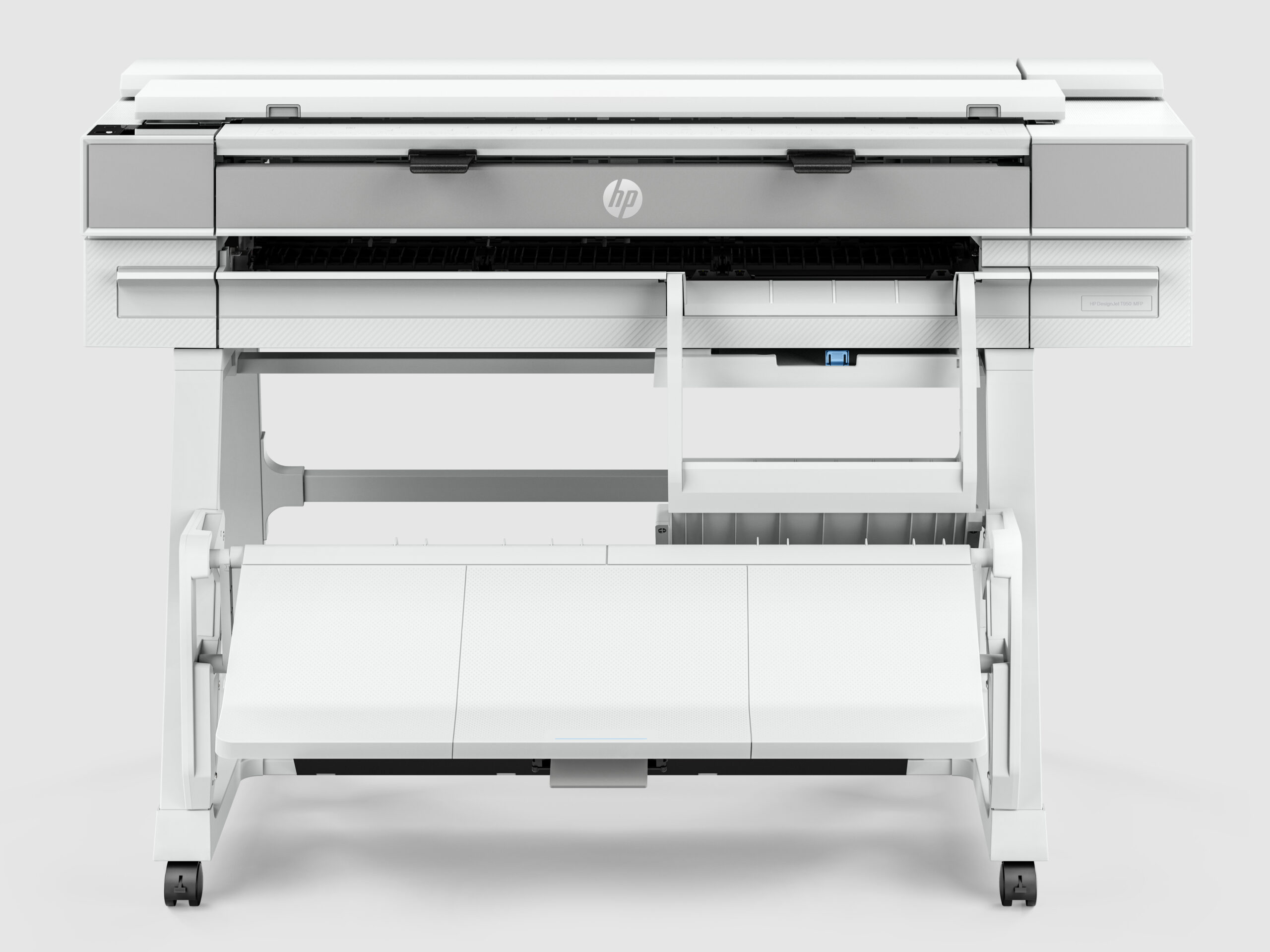

HP DesignJet XT950 36″ Multifunction Printer (2Y9H3F)
The HP DesignJet XT950 36″ Multifunction Printer (2Y9H3F) is engineered for professionals in CAD, GIS, and AEC sectors seeking a high-performance, eco-friendly, and secure large-format printing solution. With rapid print speeds, an integrated scanner, and HP Wolf Pro Security, it ensures efficient workflows and data protection. Supporting multi-size media handling, a 100-sheet input tray, and HP Flex Tech Inks, it delivers high-quality outputs. Constructed with at least 35% recycled plastics, it aligns with sustainability goals.
Key Features:
- Fast Printing: Produce D-size (24″ x 36″) prints in as fast as 21 seconds; up to 120 D-size prints per hour.
- Integrated Scanner: Front-loading scanner with up to 600 dpi resolution; scan speeds up to 1.5 in/sec (color) and 4.5 in/sec (grayscale).
- Multi-Size Media Handling: Supports roll feed up to 36″ wide and sheet feed from 8.3″ x 11″ to 36″ x 66″.
- High-Capacity Input Tray: 100-sheet capacity for 11″ x 17″ media, reducing the need for manual intervention.
- Eco-Friendly Design: Constructed with at least 35% recycled plastics; ENERGY STAR® certified.
- Advanced Security: Features HP Wolf Pro Security, including Secure Boot and whitelisting.
- Connectivity: Gigabit Ethernet, Wi-Fi 802.11b/g/n, Wi-Fi Direct, and support for mobile printing via HP app.
Technical Specifications:
| Specification | Details |
|---|---|
| Model Number | 2Y9H3F |
| Print Technology | HP Thermal Inkjet |
| Ink Types | Pigment-based (C, M, Y, mK) |
| Print Resolution | Up to 2400 x 1200 optimized dpi |
| Print Speed | 21 sec/page on D-size (24″ x 36″); 120 D-size prints per hour |
| Media Sizes Supported | Rolls up to 36″ wide; sheets from 8.3″ x 11″ to 36″ x 66″ |
| Scanner Resolution | Up to 600 dpi |
| Scan Speed | Up to 1.5 in/sec (color, 200 dpi); up to 4.5 in/sec (grayscale, 200 dpi) |
| Connectivity | Gigabit Ethernet, Wi-Fi 802.11b/g/n, Wi-Fi Direct |
| Memory | 1 GB |
| Dimensions (W x D x H) | 55.4″ x 28.3″ x 38.1″ |
| Weight | Approximately 123.5 lbs |
What’s in the Box:
- HP DesignJet XT950 36″ Multifunction Printer
- Printer Stand
- Spindle
- Printhead
- Introductory Ink Cartridges
- Setup Poster
- Quick Reference Guide
- Power Cord
Additional Resources:
- Explore our range of CAD & Technical Printers.
- Learn about HP’s commitment to sustainability and recycling programs.
Product Videos:
Brand
Brand
HP
HP DesignJet Printers, Inks & Media
HP DesignJet printers are the standard for dependable wide format printing in architecture, engineering, construction, schools, and in-plant print rooms. At Paragon Visual, we focus on HP because the DesignJet platform delivers sharp lines, accurate colors, and proven reliability in environments where deadlines and details really matter. When you pair HP hardware with the right inks and media, you get a complete wide format solution that is simple to manage and easy to support. This HP brand page brings together the printers and supplies we recommend most often for our customers. From technical devices for CAD drawings to graphic printers for posters and displays, we help you configure the right HP DesignJet system and keep it running with original HP inks and media. Our team supports you here in the United States, so you are never left wondering who to call when a project is on the line.Why Choose HP Through Paragon Visual?
- Proven HP DesignJet platform: Reliable printers designed for technical documents, maps, renderings, posters, and graphics.
- Right-sized recommendations: We match HP DesignJet models to your volume, applications, and workspace instead of pushing a one-size-fits-all solution.
- Original HP inks and supplies: Genuine HP inks, printheads, and media that protect print quality and reduce unexpected downtime.
- Real-world support: Guidance from a team that understands wide format printing, not just box shipping.
HP Wide Format Solutions We Offer
- Technical and CAD printers: HP DesignJet devices built for line drawings, plans, and construction documents where clarity and scale are critical.
- Graphic and photo printers: HP DesignJet models optimized for posters, signage, and image-heavy prints with smooth gradients and rich color.
- Original HP inks and printheads: Dye and pigment inks designed to work together with HP printheads for consistent results from job to job.
- HP papers and specialty media: Coated bond, photo papers, and specialty media that help you get the most from your HP wide format printer.
Who HP Wide Format is For
- Architects, engineers, and contractors: Clear, accurate plans and construction sets that are easy to read in the office or on the job site.
- Reprographics and in-plant print rooms: Reliable HP DesignJet printers that can handle daily repeat jobs and mixed print volumes.
- Schools, districts, and universities: Posters, classroom visuals, career and technical education projects, and facility signage.
- Print service providers: Supplemental wide format capacity for fast-turn technical or short-run graphic work.
Explore HP Resources
- Shop HP wide format printers: Browse our selection of HP DesignJet models in the Graphic Printers category.
- Find HP ink and supplies: See original HP ink and related products for popular models in our HP DesignJet ink supplies collection.
- Recycle HP ink and toner: Use HP Planet Partners to return and recycle used cartridges at HP’s recycling program.
HP DesignJet printers and supplies from Paragon Visual give your team a dependable wide format printing platform, backed by expert support and genuine HP consumables.
Technical Specifications
| Acoustic power emissions (active, printing) | 5.8 B(A) (operating), <3.4 B(A) (idle) |
| Acoustic pressure emissions | 42 dB(A) (operating), <16 dB(A) (idle) |
| Color(s) of printing supplies | Cyan, magenta, yellow, matte black |
| Connectivity, standard | Gigabit Ethernet (1000Base-T), Wi-Fi 802.11b/g/n |
| Copy reduce / enlarge settings | 50 to 400% |
| Eco label | ENERGY STAR® certified; EPEAT registered |
| Electromagnetic compatibility | Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES), EU (RED Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI); Korea (KCC) |
| Energy star certified | Yes |
| Environmental certification | ENERGY STAR, EPEAT, UL ECOLOGO® certified inks, CE marking (including WEEE, RoHS, REACH, ErP). In compliance with applicable WW RoHS materials restriction requirements. |
| Finished output handling | Sheet feed, roll feed, front-loading input tray (100 sheet capacity), sheet organizer (50 sheet capacity[4]), stacker (40 sheet capacity[4]), automatic horizontal cutter |
| Functions | Print, copy, scan |
| HP ePrint capability | Yes |
| Ink drop | 6 pl (C, M, Y); 12.6 pl (mK) |
| Ink types | Pigment-based (C, M, Y, mK) |
| Internal Storage | None |
| Line accuracy | ±0.1%[2] |
| Linear scan speed | Up to 1.5 in/sec (color, 200 dpi); Up to 4.5 in/sec (grayscale, 200 dpi) |
| Manufacturer Warranty | One-year limited hardware warranty. Warranty and support options vary by product, country and local legal requirements. |
| Maximum optical density (black) | 15 L* min/1.7 D[3] |
| Media sizes standard (sheets, rolls) | 14.5 to 36 in |
| Media sizes supported | Input tray: A, B; Manual feed: A, B, C, D, E |
| Media sizes, custom | Front-loading input tray: 8.3 x 11 to 12 x 18 in; Manual feed: 8.3 x 11 to 36 x 66 in |
| Media thickness | Up to 0.03 in |
| Media types | Bond and coated paper (bond, coated, heavyweight coated, plain, bright white, blueprint), technical paper (natural tracing), film (clear, matte), photographic paper (ID satin, ID gloss), self-adhesive (adhesive matte/gloss, adhesive polypropylene gloss), Polypropylene (matte) |
| Media width, maximum | 36 in |
| Memory | 2 GB |
| Model size | 36 in |
| Network ready | Standard |
| Non-Operating Humidity Range | 0 to 95% RH |
| Non-printable area (cut-sheet) | 0.2 x 0.2 x 0.2 x 0.2 in |
| Non-printable area (roll media) | 0.2 x 0.2 x 0.2 x 0.2 in |
| Number of print cartridges | 4 (C, M, Y, mK) |
| Operating altitude | Up to 9843 ft |
| Operating humidity range | 20 to 80% RH |
| Operating temperature range | 41 to 104°F |
| Orderable supplies | HP Original Ink: HP 738M cartridges (Black, Cyan, Magenta, Yellow), |
| Post consumer recycled plastic in hardware by weight of plastic | 36% |
| Power | Input voltage (auto ranging): 100-240 V (±10%), 50/60 Hz (±3 Hz), 1.2 A max |
| Power consumption | 35 W (printing), <11 W (ready), <3.5 W (sleep), <0.1 W (standby). Auto-scheduled printer on/off usage. |
| Print head nozzles | 1376 per color; 5504 in total |
| Print heads | 1 (C, M, Y, mK) |
| Print languages | TIFF, JPEG, URF, PDF, HP-GL/2, HP-RTL, CALS G4 |
| Print multi-size files in one click | Yes |
| Print quality color (best) | Up to 2400 x 1200 optimized dpi |
| Print speed | 21 sec/page on D, 120 D prints per hour[1] |
| Print Technology | Ink |
| Print technology | HP Thermal Inkjet |
| Printer drivers included | Raster driver for macOS and Windows, HP-GL/2 driver for Windows |
| Printing path | Wi-Fi Direct, remote printing, Apple AirPrint and HP app for Android and iOS devices, Windows and macOS printer drivers, printing support for Chrome OS, print from USB pen drive |
| Product display name | HP DesignJet XT950 Large Format 36-in Multifunction Plotter Printer with Compact Size, Versatility for CAD And Posters, Automatic A1 and A3 Printing in One Device |
| Recommended media | HP Universal Bond Paper (FSC® certified)[5] (recyclable)[6];HP Coated Paper (FSC® certified)[5] (recyclable)[6];HP Heavyweight Coated Paper (FSC® certified)[5] (recyclable)[6] |
| Registration required | No |
| Remote print enabled | Yes |
| Roll external diameter | 5.5 in |
| Roll maximum input | 1 |
| Roll maximum weight | 28.6 lb |
| Safety | USA and Canada (CSA certified); EU (RED Directive, EN 62368-1 compliant); Singapore (PSB); China (CCC); Mexico (NYCE); Argentina (IRAM); India (BIS) |
| Scan file format | JPEG, PDF, TIFF |
| Scan input modes | Scan to email, network, and USB. Scan to cloud, computer, and mobile through HP app. |
| Scan resolution, optical | Up to 600 dpi |
| Scan size, maximum | 36 x 109 in |
| Scan size, minimum | 5 x 5 in |
| Scanner type | Sheetfed, CIS (Contact Image Sensor), media jam detection sensor, front feed scanning method |
| Security features | HP Secure Boot, whitelisting, Security event logging, Disable network ports and protocols, SNMPv3, 802.1x compatibility, TLS/SSL, Semi-permanent-queue Erase, NTLM v2, HP Web JetAdmin, HP Security Manager, SIEM Integration |
| Software included | HP Click for Windows and macOS, HP app for Windows, macOS, Android, and iOS |
| Storage | 2.7 GB reprint queue |
| Storage temperature range | -13 to 131°F |
| Supported Primary Applications | Line drawings; Renderings; Presentations; Maps; Posters |
| Technical features | A3 input tray;Stacker;A3 sheet organizer;1- click scan/copy;Auto-power on/off scheduler;Max. resolution 2400 x 2400 dpi;HP Wolf Pro Security;130/300 ml cartridges;HP Flex Tech Inks |
| Theoretical minimum line width | 0.0008 in (via raster driver) |
| What's in the box | HP DesignJet XT950 MFP, printheads, ink cartridges, printer stand, spindle, guide, warranty flyer, power cord |
Specifications
[1] Mechanical printing time. Printed in Fast mode with Economode on, using HP Bright White Inkjet Paper (bond) and Original HP inks.
[2] ±0.1% of the specified vector length or ±0.2 mm (whichever greater) at 23ºC (73ºF), 50-60% relative humidity, on A0/E printing material in Best or Normal mode with HP Heavyweight Coated roll feed and Original HP inks.
[3] With HP Universal Instant Dry Photo Gloss media with Original HP inks.
[4] Based on test results using plain paper and standard configuration. Capacity is subject to paper type, printed file, and ambient conditions.
[5] BMG trademark license code FSC®-C115319, see http://www.fsc.org . HP trademark license code FSC®-C017543, see http://www.fsc.org
[6] Can be recycled through commonly available recycling programs.
Legal disclaimer
Product image may differ from actual product
AirPrint; CE marking; ENERGY STAR; EPEAT green; IPv6 Ready; Mac; Wi-Fi Certified; Windows 11 Compatible
